Global configuration preferences

Misura™ Flash offers few configuration options which will determine default plotting appearance, parameters population, and data import aspects.

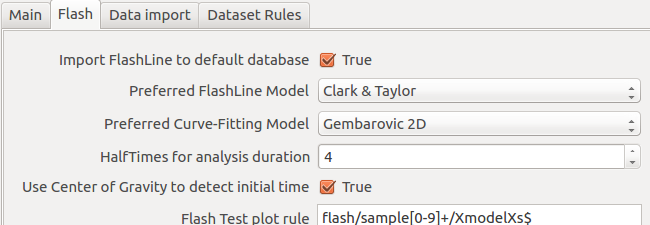

Options are contained into the general Preferences, under the Flash tab:

Advanced options, related to default plots, are also listed.

Import FlashLine to default database

Default: True

FlashLine data will be compressed into an Misura™ file into default database location (usually MisuraData under user’s home folder). If this option is false, the Misura™ file will be created into the same folder containing the FlashLine data - even if remote.

Preferred FlashLine Model

Default: Clark & Taylor

This option determines which model will be loaded to create default plots.

Preferred Curve-Fitting Model

Default: Gembarovic 2D

The default curve-fitting model which Misura™ will attempt to plot when loading a test for the first time.

HalfTimes for analysis duration

Default: 4

The halftime will be multiplied for this value in order to obtain the required thermogram time frame to perform a model fitting.

Use Center of Gravity to detect initial time

Default: True

While importing FlashLine data, the center of gravity of the laser pulse is always calculated and saved. By enabling this option, any subsequent computation will use the center of gravity as the initial time of the test. By disabling it, the onset of laser pulse will be used instead.

Show HalfTime multiple on thermograms

Default: 20

Each thermogram (“shot”) is usually longer than needed. This options determines the maximum number of halftime multiples to plot on Model Plot and Segment Plot.
